See BIFROST's source through its train

The ESS source BIFROST sees, from tof's source library, put through BIFROST's six choppers with the tools on Weight the region by a source.

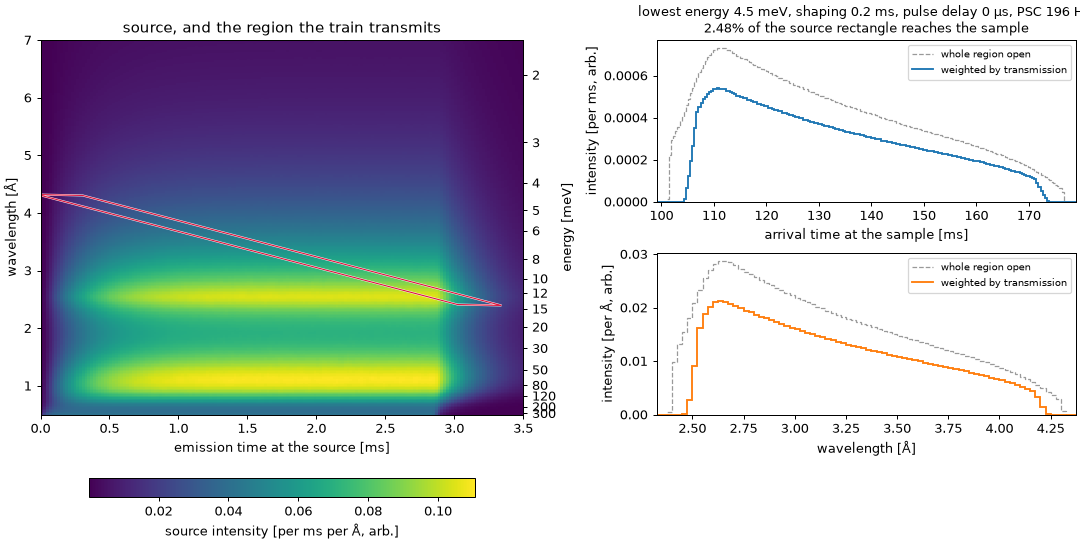

The BIFROST source intensity, the region its chopper train transmits, and what reaches the sample by arrival time and by wavelength

On the left is the source over (emission time, wavelength), with the region the train transmits drawn over it. It's a thin stripe because the pulse-shaping pair is open for a fraction of a millisecond, and every neutron that gets through crossed it then.

On the right is what reaches the sample, by arrival time and by wavelength, with energy along the top. The dashed curves count the whole transmitted region as open, the way Region.transmit does. The solid ones weight it by how likely each neutron is to get through while a disc's edge is still sweeping the beam, as Region.transmit_weighted does.

The controls choose:

  • lowest energy: where chopcal places the band, as chopcal.bifrost(energy_min=...);
  • pulse-shaping time: the burst the pulse-shaping pair cuts, shaping_time;
  • pulse delay: moves every disc together, as ESS's BeamPosDly-S does with the experiment delays NICOS sets held fixed. chopcal's settings are for none, so moving it slides the stripe along the pulse;
  • pulse-shaping disks: the 196 Hz disks BIFROST was designed for, or the 126 Hz substitutes installed now, as pulse_shaping_speed_max. The burst is set by the lag between the pair, so the totals hardly move. The slower disks' edges sweep the beam more slowly, though, which softens the edges of the profiles by up to 3 % of their peak at the shortest bursts.

How it is made

  • The source: tof's ess-bifrost distribution, summed into 20 µs by 0.025 Å bins over 0–3.5 ms and 0.5–7 Å. That rectangle is also the source polygon chopcal transmits. tof counts emission times 5 cm from the moderator, so every chopper path and the sample distance are shortened by 5 cm to match.
  • The discs: each has two apertures. beam_aperture(..., at='inner'), the default chopcal.bifrost uses, bounds the outline. beam_aperture(..., at='centre') sets the ramps of the weighted transmission. The pulse-shaping pair and the bandwidth pair are each a group: groups=[0, 0, 1, 2, 3, 3].
  • The interactive figure: scripts/bifrost_intensity_figure.py pre-computes every combination of the controls, and this page draws the one selected. The source picture stays the same throughout. A notebook version with a free choice of every setting, the source rectangle and its binning lives in the ESS code shelf.
